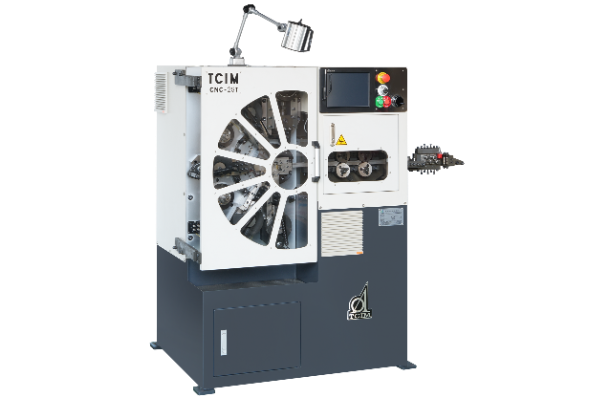

TCIM-CNC-29T2
Add to inquiry box
Production information
|
Wire Diameter |
0.6-4.0 mm |
|
Thickness of Wire |
0.3-1 mm |
|
Width of Wire |
25 mm |
|
Hardness of Wire ( Carbon) |
80C |
|
Axes |
2 |
|
Max.Production Rate (pcs/min) |
150pcs/min |
|
Max.Feed Length |
Unlimited |
|
Press Capacity (ton) |
N/A |
|
Slide Capacity (ton) |
1.8 ton ; 12 o'clock slide |
|
Press Stroke (mm) |
N/A |
|
Slide Stroke (mm) |
12 o'clock slide18mm double cam 37mm |
|
Slide Accessory |
4 |
|
Machine Dimension |
1460*880*1630 mm |
|
Machine Weight |
1130 kgs |
※ The specifications are subject to change without notice.
